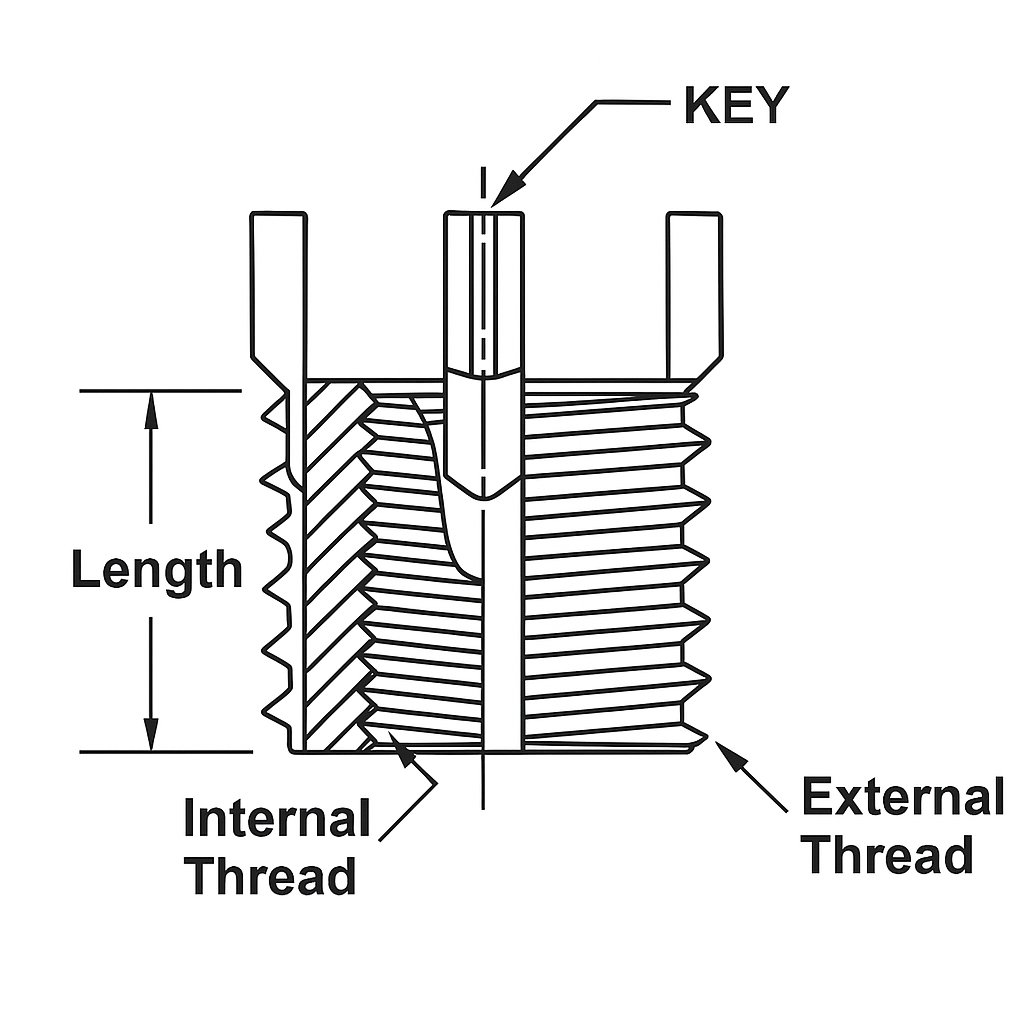

M8×1.25 Key Locking Insert – Thin Wall – Stainless Steel

Part Number: 26353
Internal Thread: M8×1.25
External Thread: M12×1.25
Length: 12.0 mm
Material: Stainless Steel
Insert Type: Thin Wall with 4 locking keys
Ideal for: Aluminum, magnesium, and other soft metals
Resistance: High torque and vibration
Compatible with: KEENSERT KNM-M8×1.25

Installation Tool PN: 24753
Tap Drill Size: 10.8 mm
C'Sink Diameter: 12.25 mm
Thread Tap: M12×1.25
Min Depth: 13.5 mm
