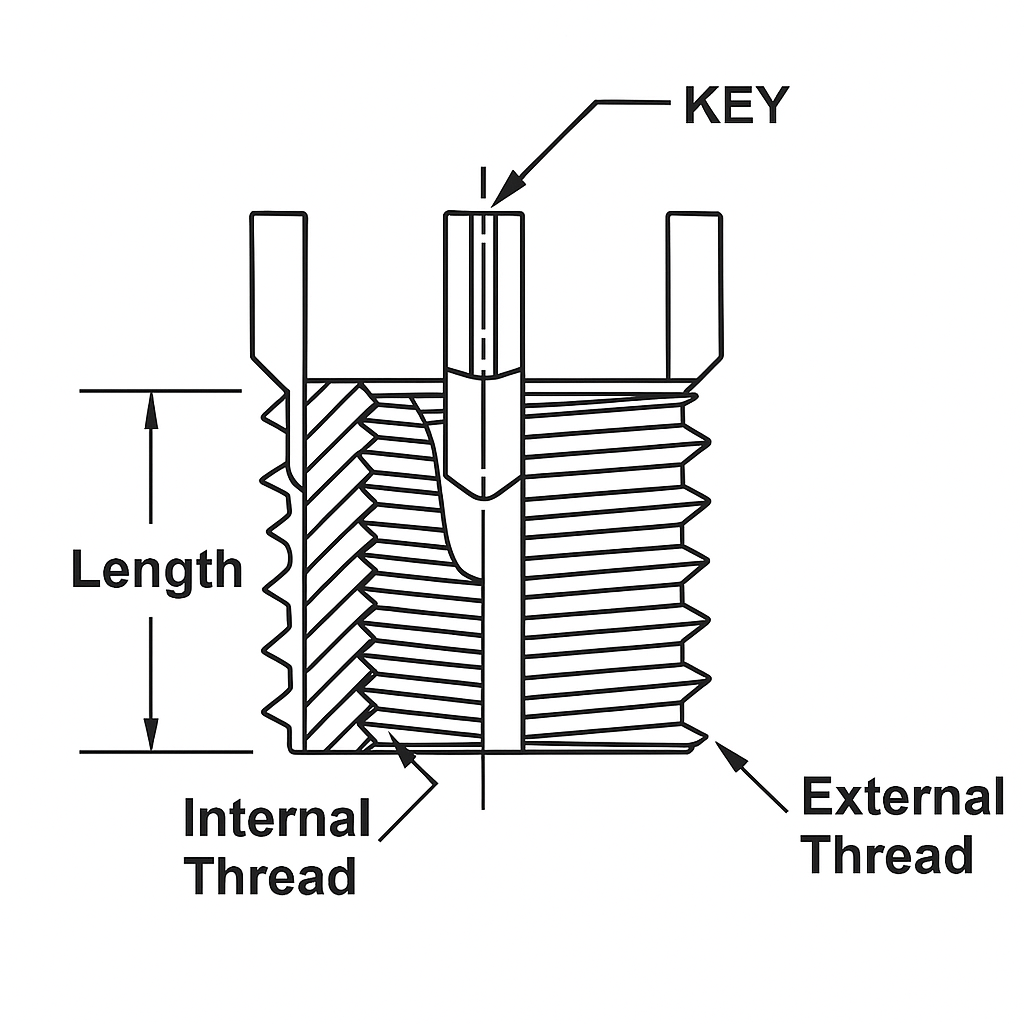

M6×1.0 Key Locking Insert – Thin Wall – Stainless Steel

Part Number: 26352
Internal Thread: M6×1.0
External Thread: M10×1.25
Length: 10.0 mm
Material: Stainless Steel
Insert Type: Thin Wall with 4 locking keys
Ideal for: Aluminum, magnesium, and other soft metals
Resistance: High torque and vibration
Compatible with: KEENSERT KNM-M6×1.0

Installation Tool PN: 24752
Tap Drill Size: 8.8 mm
C'Sink Diameter: 10.25 mm
Thread Tap: M10×1.25
Min Depth: 11.5 mm
