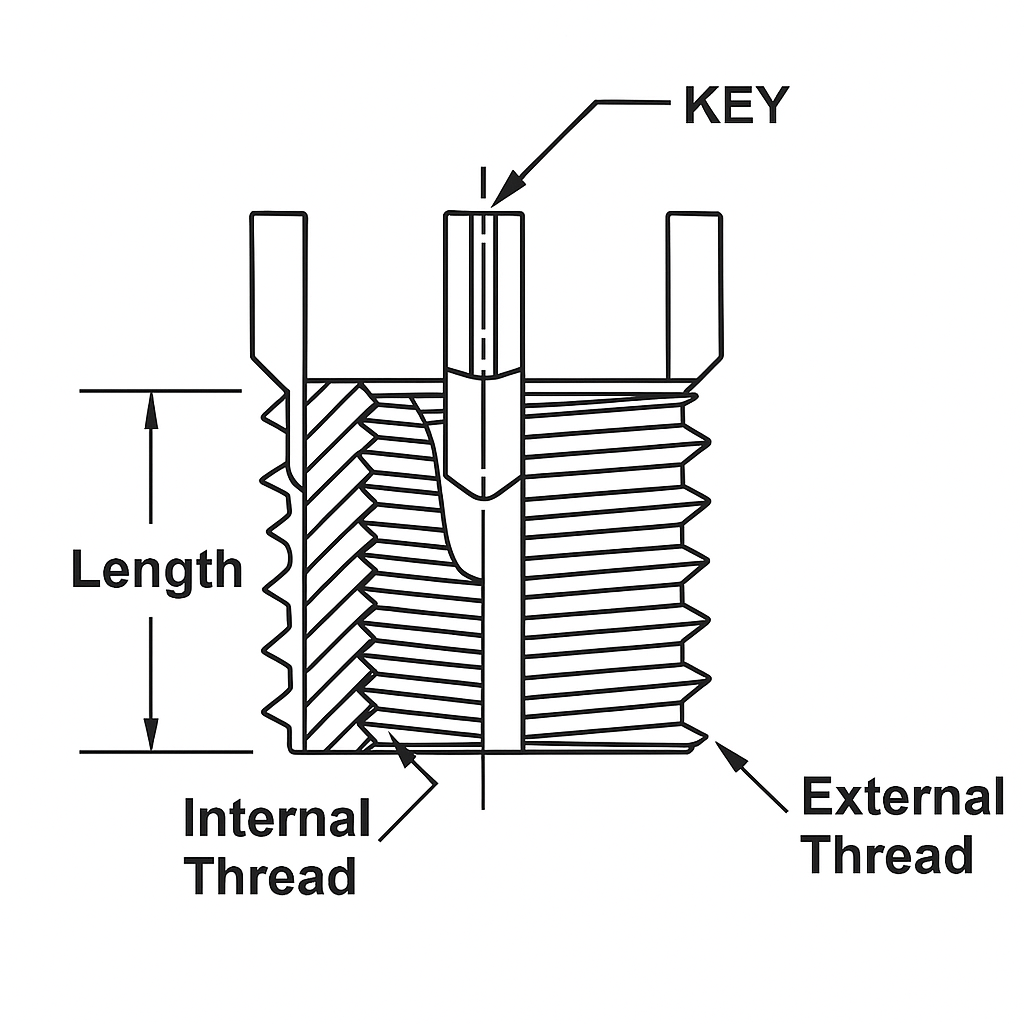

M12×1.25 Key Locking Insert – Thin Wall – Stainless Steel

Part Number: 26356
Internal Thread: M12×1.25
External Thread: M16×1.5
Length: 16.0 mm
Material: Stainless Steel
Insert Type: Thin Wall with 4 locking keys
Ideal for: Aluminum, magnesium, and other soft metals
Resistance: High torque and vibration
Compatible with: KEENSERT KNM-M12×1.25

Installation Tool PN: 24756
Tap Drill Size: 14.75 mm
C'Sink Diameter: 16.25 mm
Thread Tap: M16×1.5
Min Depth: 17.5 mm
