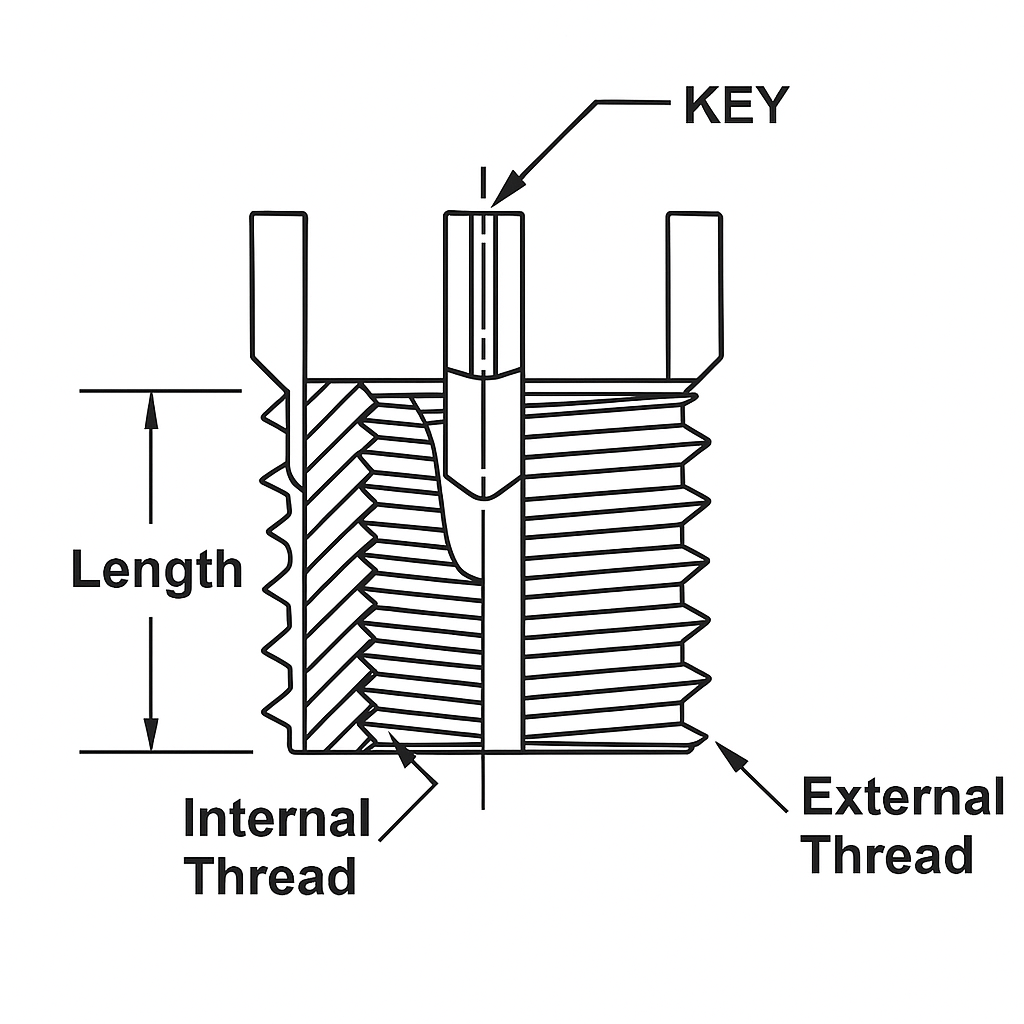

M10×1.5 Key Locking Insert – Thin Wall – Stainless Steel

Part Number: 26355
Internal Thread: M10×1.5
External Thread: M14×1.5
Length: 14.0 mm
Material: Stainless Steel
Insert Type: Thin Wall with 4 locking keys
Ideal for: Aluminum, magnesium, and other soft metals
Resistance: High torque and vibration
Compatible with: KEENSERT KNM-M10×1.5

Installation Tool PN: 24755
Tap Drill Size: 12.8 mm
C'Sink Diameter: 14.25 mm
Thread Tap: M14×1.5
Min Depth: 15.5 mm
